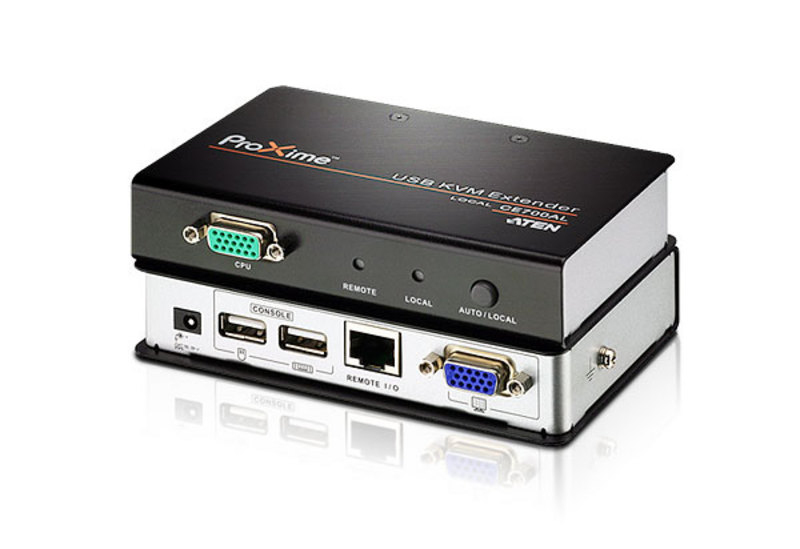

Aten CE700A Черный удлинитель консолей

USB KVM extender The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by:
• incorporating 8KV/15KV ESD protection and 2KV surge protection;
• providing superior video quality - up to 1920 x 1200 resolution;
• using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection;
• it is able to sense the distance to the system and automatically adjusts the gain accordingly;
• it features a custom ASIC to ensure the utmost in reliability and compatibility. • Cat 5e cable connects the Local and Remote Units – up to 150m apart
• Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Built-in ASIC for greater reliability and compatibility
• Auto Signal Compensation (ASC)
• USB Keyboard and USB Mouse Ports
• USB overcurrent detection and prevention
• Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes.
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
• Automatic gain control – adjusts signal strength to compensate for distance
• High resolution video – up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
• Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
• Rack mountable
• Easy to install – no software required – connecting cables to the devices is all it takes
• Including cable set
