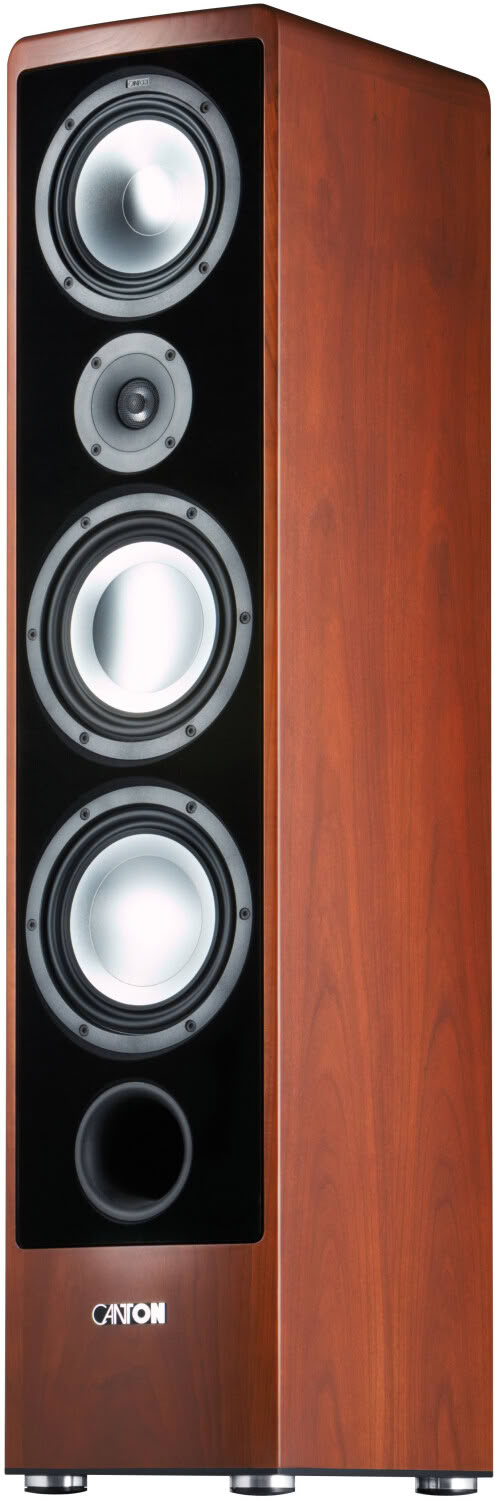

Canton Ergo 690 DC Kirsche

Product type: Floor-standing speaker
Series: Ergo

Operation
Principle: Passive

Equipment
Specialty: Direct Current Technology

Performance
Music Power Output (PMPO): 320 Watt
Sensitivity: 88 dB/mW
Rated Load: 170 Watt
System: 3-Way
Transition frequencies: 300 Hz, 3,500 Hz
Frequency Response: 20 - 40.000 Hz
Frequency Response of: 20 Hz
Frequency Response up to: 40.000 Hz
Impedances: 4 Ohm, 6 Ohm, 8 Ohm

Connections
Speaker connections: Screw terminals (gold-plated), Bi-Wiring

Design
Case Surface: Veneer
Color: brown
Housing design: Cherry

Construction
Housing property: Bass reflex
Number of tweeters: 1
Tweeter chassis: 25 mm
Materials Tweeter: Manganese, Aluminum
Number of midrange drivers: 1
Midrange driver: 180 mm
Midrange driver material: Aluminum
Number of woofers: 2
Woofer: 200 mm
Woofer Material: Aluminum

Dimensions and scope of delivery
Weight: 23,5 kg
Scope of delivery: User manual
Width: 230 mm
Height: 1.050 mm
Bass: 305 mm

Additional features
Areas of application: Hi-Fi System, Living Room
Configurations: Floor, vertical
Market launch: 2013
