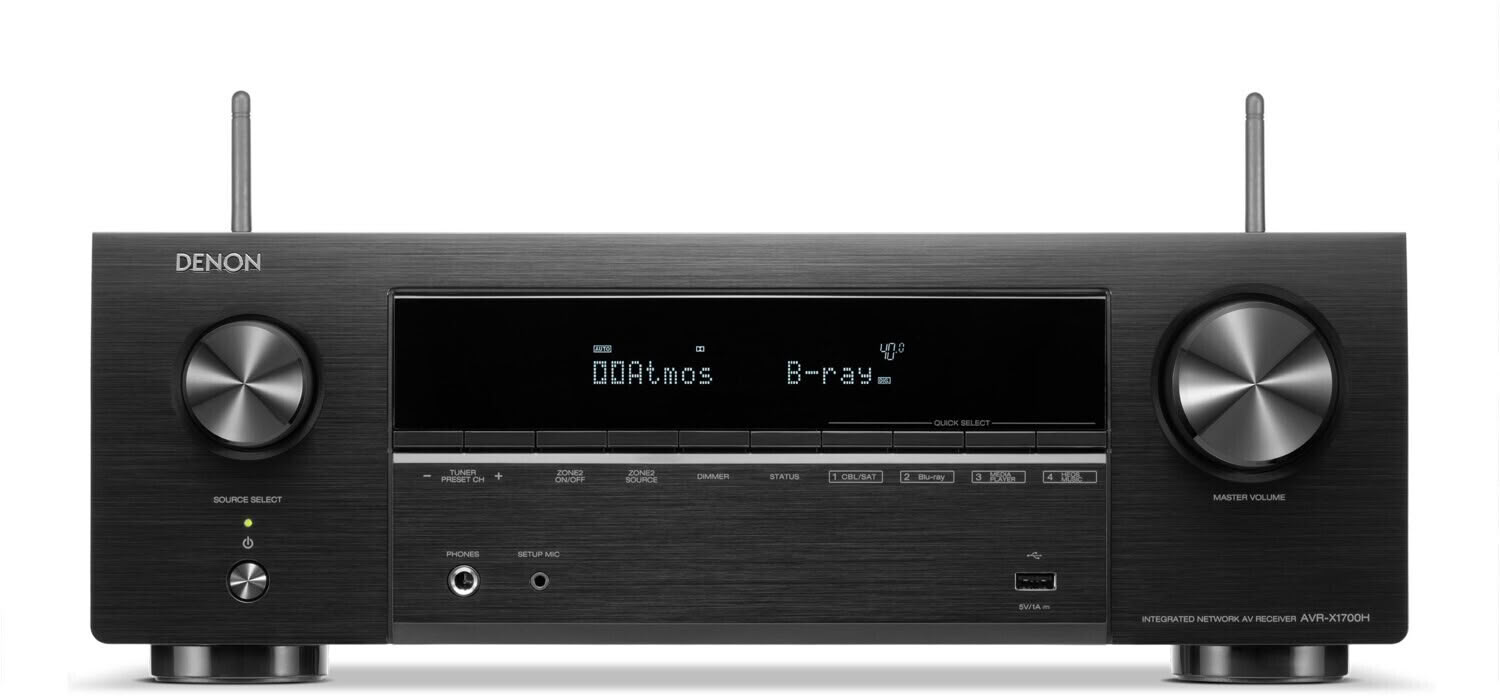

Product type: Audio/Video Receiver
Series: Denon AV Receiver
Speaker configuration: 7.2
Power per channel: 145 Watt
Technical specifications
Output power: 1.015 Watt
Speaker connectors: Banana plugs suitable, screw terminals
Construction: 4Ω Speaker Support
HDMI version: HDMI 2.1
Playback formats: FLAC, ALAC, DSD, WAV
Connections
analog audio inputs: 2x LINE In (RCA, Stereo), 1x MM Phono In (RCA, Stereo)
analog audio output: 1x LINE Out (Cinch/RCA, Stereo)
digital audio inputs: 2x S/PDIF IN (TOS-Link optical)
HDMI ports: 6x HDMI inputs, 1x HDMI output
Video Connections: 2x Composite IN, 1x Composite OUT
Preamp outputs: 2x Subwoofer (Cinch/RCA)
Front Connections: 1x USB 2.0 Type-A, headphone output, 1x measurement microphone (setup mic)
Data connections: 1x USB 2.0, 1x Network (Ethernet)
additional connection: Antenna connection
Audio
Dolby Formats: Dolby Atmos, Dolby TrueHD, Dolby Surround, Dolby Height Virtualization
DTS Formats: DTS:X, DTS Virtual:X, DTS HD, DTS Neural:X, DTS HD Master Audio, DTS
Video
Supported Resolutions: 8K (4320p), 4K (2160p)
Video Functions: HDCP 2.3, HDR10+, Dolby Vision, High Dynamic Range (HDR), HLG (Hybrid Log Gamma)
3D-Ready: yes
Connectivity
Network functions: Control via app, multiroom
Wireless transmissions: HEOS, Bluetooth, Wi-Fi, Spotify Connect, AirPlay 2, AirPlay
Streaming Services: Tidal, Spotify, Deezer, Amazon Music, Pandora
USB interface: yes
HDMI-CEC: yes
Functions
Environmental properties: Energy-saving mode, automatic shut-off, sleep timer
automatic measurement: yes
Measurement System: Audyssey MultEQ XT
with remote control: yes
Power supply
Power consumption in operation: 440 Watt
Power Consumption Standby: 39 Watt
Smart Home
Voice Assistants: Apple Siri, Amazon Alexa, Google Assistant
further properties
Dimensions: 434 x 151 x 339 mm
Weight: 8,6 kg
Color: black
