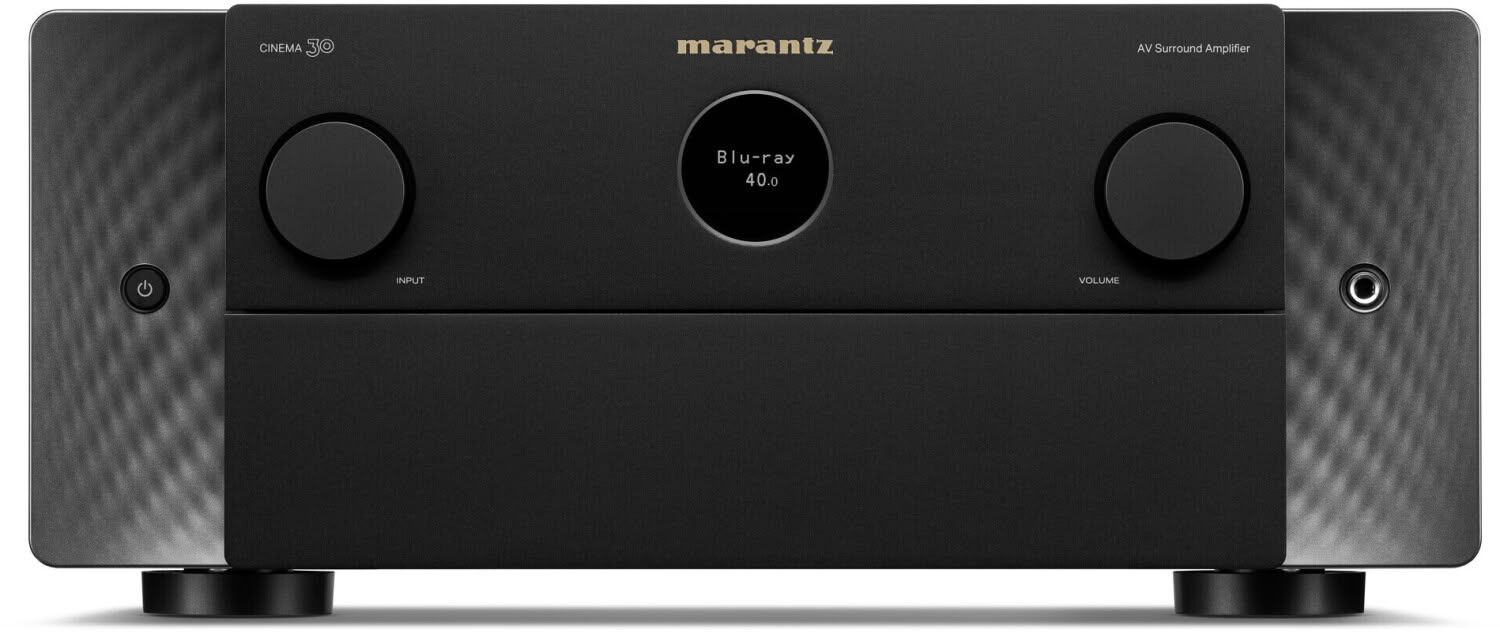

Product type: Audio/Video Receiver
Series: Marantz Cinema
Speaker configuration: 11.4
Power per channel: 140 Watt
Technical specifications
Output power: 1.125 Watt
Connections
analog audio inputs: 6x LINE In (Cinch/RCA, Stereo), 1x MM Phono In (Cinch/RCA, Stereo)
analog audio outputs: Zone 1 (Line Out, RCA, Stereo), Zone 2 (Line Out, RCA, Stereo)
digital audio inputs: 2x S/PDIF IN (Cinch/RCA coaxial), 2x S/PDIF IN (TOS-Link optical)
HDMI ports: 8x HDMI-In, 3x HDMI-Out, HDMI-eARC
Video Connections: 2x Composite IN, 1x Component IN
Preamp outputs: 11.4 Surround (Cinch/RCA), 4x Subwoofer (Cinch/RCA)
Surround Input: 7.1 Surround (Cinch/RCA)
Front Connectors: 1x Measuring microphone (Setup Mic), 1x USB 2.0 Type-A connector
Connections for control signals: 3x 12V Trigger OUT, RS-232, Control Bus IN, Control Bus OUT, 1x Remote IN
gold-plated connectors: yes
Audio
Audio functions: Audyssey DSX, Pure Direct, Jitter Reduction, Audyssey Dynamic EQ, Audyssey Dynamic Volume, Audyssey LFC
Dolby Formats: Dolby Atmos, Dolby TrueHD, Dolby Height Virtualization, Dolby Atmos Music, Dolby Surround
DTS Formats: DTS:X, DTS Virtual:X, DTS HD Master Audio, DTS Neural:X
THX Formats: THX Enhanced
Auro 3D: yes
Number of listening zones: 3
Video
Supported Resolutions: 1080p, 4K (2160p), 8K (4320p)
Video Functions: HDCP 2.3, High Dynamic Range (HDR), HDR10+, HLG (Hybrid Log Gamma), Dolby Vision, Variable Refresh Rate, Quick Frame Transport
Connectivity
Network functions: Audio Streaming, Control via App, Control via IP, Multiroom, Network Standby Through, USB Audio Streaming, Network Streaming, HDMI Network Channel (HEC)
Wireless Transmissions: HEOS, AirPlay 2, Wi-Fi, Bluetooth, AirPlay, Roon Ready
Streaming Services: Internet radio, Amazon Music, Deezer, Spotify, TuneIn, Pandora, Sirius XM, Tidal, Napster, Soundcloud
USB interface: yes
HDMI-CEC: yes
Functions
Comfort features: Installation Assistant, learning remote control
Environmental properties: Auto shutoff, Standby pass-through, Power saving mode
automatic measurement: yes
Calibration systems: Audyssey MultEQ XT32, Dirac Live
LipSync: yes
Reception areas: FM (FM), Internet radio
Power supply
Power consumption in operation: 710 Watt
Smart Home
Language Assistants: Amazon Alexa, Google Assistant, Apple Siri
further properties
Dimensions: 440 x 185 x 414 mm
Weight: 15,1 kg
Color: black
