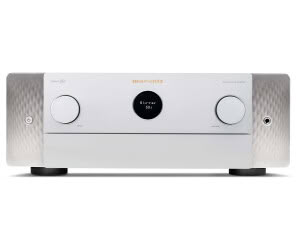

Product type: AV Receiver
Series: Marantz Cinema
Speaker configuration: 9.4
Power per channel: 110 Watt
Technical specifications
Output power: 990 Watt
Connections
analog audio inputs: 6x LINE In (Cinch/RCA, Stereo), 1x MM Phono In (Cinch/RCA, Stereo)
analog audio output: Zone 2 (LINE Out, RCA, Stereo)
digital audio inputs: 2x S/PDIF IN (TOS-Link optical), 2x S/PDIF IN (Cinch/RCA coaxial)
Preamp outputs: 11.4 Surround (Cinch/RCA), 4x Subwoofer (Cinch/RCA)
Surround Input: 7.1 Surround (Cinch/RCA)
Front Connectors: 1x Measuring microphone (Setup Mic), 1x USB 2.0 Type-A connector
Data connections: 1x Network (Ethernet), 1x USB 2.0
Connections for control signals: RS-232, 3x 12V Trigger OUT, 1x Remote IN, Control Bus IN, Control Bus OUT
gold-plated connectors: yes
Audio
Audio functions: Pure Direct, Audyssey LFC, Audyssey Dynamic Volume, Audyssey Dynamic EQ, Jitter Reduction, Audyssey DSX
Dolby Formats: Dolby Height Virtualization, Dolby Atmos, Dolby Surround, Dolby Atmos Music, Dolby TrueHD
DTS Formats: DTS:X, DTS Neural:X, DTS HD Master Audio, DTS Virtual:X, DTS HD
THX Formats: THX Enhanced
Auro 3D: yes
Number of listening zones: 3
Video
Supported Resolutions: 1080p, 4K (2160p), 8K (4320p)
Video Functions: High Dynamic Range (HDR), Dolby Vision, HLG (Hybrid Log Gamma), HDCP 2.3, HDR10+, Variable Refresh Rate, Quick Frame Transport
Connectivity
Network functions: Audio Streaming, Network Streaming, Network Standby Through, Multiroom, HDMI Network Channel (HEC), USB Audio Streaming, Control via App, Control via IP
Wireless Transmissions: HEOS, Roon Ready, AirPlay 2, Wi-Fi, Bluetooth, AirPlay
Streaming Services: Deezer, Napster, Pandora, TuneIn, Spotify, Tidal, Amazon Music, Sirius XM, Internet radio, SoundCloud
USB interface: yes
HDMI-CEC: yes
Functions
Comfort features: learning remote, installation assistant
Environmental properties: Auto shutoff, Standby pass-through, Power saving mode
automatic measurement: yes
Calibration systems: Audyssey MultEQ XT32, Dirac-Live
Reception areas: DAB, FM (VHF), DAB+, Internet radio
Power supply
Power consumption in operation: 680 Watt
Smart Home
Language Assistants: Amazon Alexa, Google Assistant, Apple Siri
further properties
Dimensions: 442 x 165 x 404 mm
Weight: 13,5 kg
Color: silver-gold
