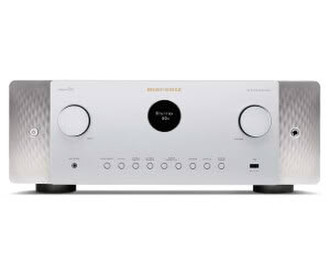

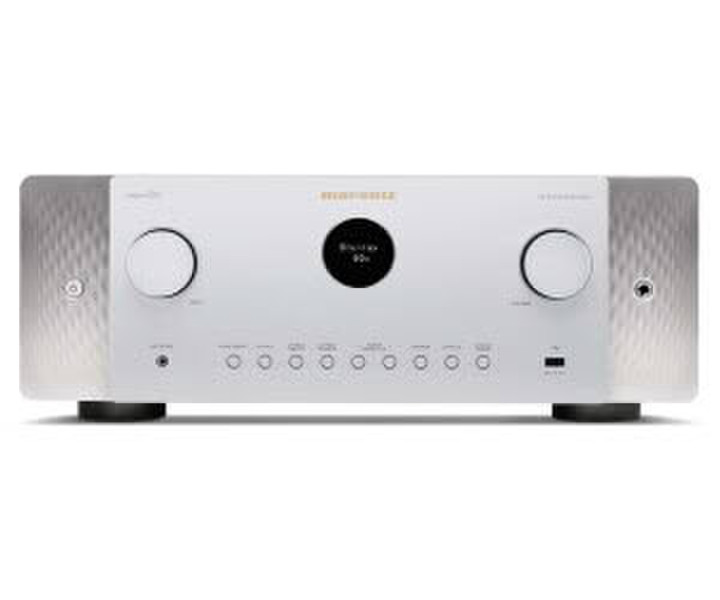

Product type: AV Receiver
Series: Marantz Cinema
Speaker configuration: 7.2
Power per channel: 100 Watt
Technical specifications
Output power: 700 Watt
Speaker connection: Screw clamps
Connections
analog audio inputs: 4x Line In (Cinch/RCA, Stereo), 1x MM Phono In (Cinch/RCA, Stereo)
analog audio output: Zone 2 (LINE Out, RCA, Stereo)
digital audio inputs: 2x S/PDIF IN (TOS-Link optical), 2x S/PDIF IN (Cinch/RCA coaxial)
HDMI ports: 6x HDMI inputs, 2x HDMI outputs, HDMI-eARC
Preamp outputs: 2x Subwoofer (RCA), 7.2 Surround (RCA)
Front Connectors: 1x Measuring microphone (Setup Mic), 1x USB 2.0 Type-A connector
Data connections: 1x Network (Ethernet), 1x USB 2.0
Connections for control signals: 1x 12V Trigger OUT, RS-232, 1x 12V Trigger IN, Control Bus IN
additional connection: Antenna connection
Audio
Audio functions: Pure Direct, Audyssey Dynamic Volume, Audyssey Dynamic EQ, Jitter Reduction
Dolby Formats: Dolby Height Virtualization, Dolby Atmos, Dolby Surround, Dolby Atmos Music, Dolby TrueHD
DTS Formats: DTS:X, DTS Neural:X, DTS HD Master Audio, DTS Virtual:X
Number of listening zones: 2
Video
Supported Resolutions: 1080p, 4K (2160p), 8K (4320p)
Video Functions: High Dynamic Range (HDR), Dolby Vision, HLG (Hybrid Log Gamma), HDCP 2.3, HDR10+, Variable Refresh Rate, Quick Frame Transport
Connectivity
Wireless Transmissions: Spotify Connect, HEOS, Roon Ready, AirPlay 2, Wi-Fi, Bluetooth, AirPlay
Streaming Services: Deezer, Napster, Spotify, Tidal, Amazon Music, Internet Radio, SoundCloud
USB interface: yes
HDMI-CEC: yes
Functions
automatic measurement: yes
Measurement System: Audyssey MultEQ XT
LipSync: yes
Reception areas: FM (FM), Internet radio
Smart Home
Language Assistants: Amazon Alexa, Google Assistant, Apple Siri
further properties
Dimensions: 442 x 165 x 354 mm
Weight: 10,9 kg
