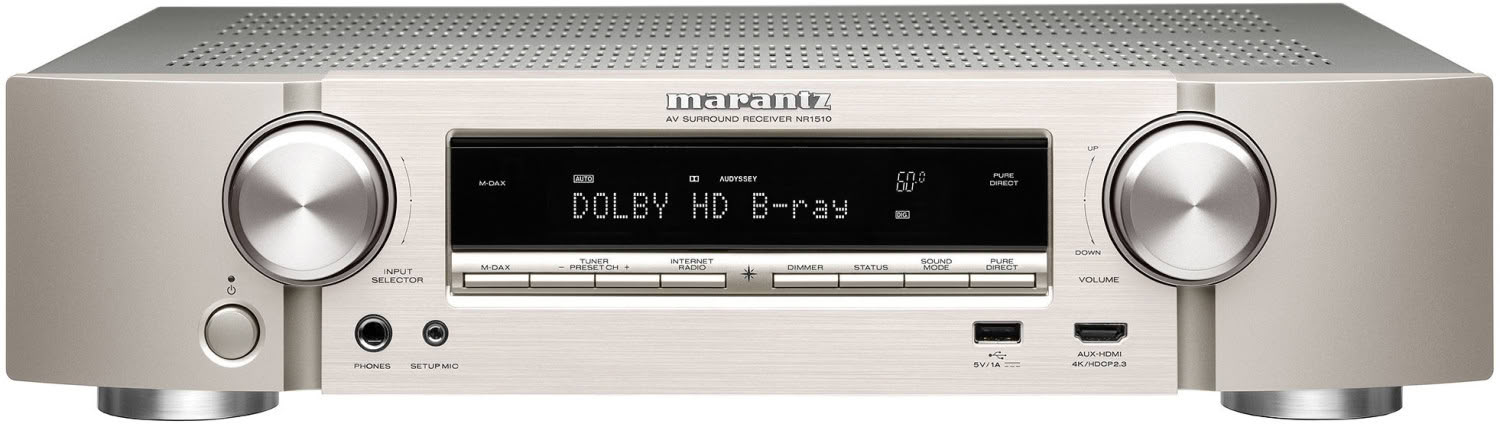

Product types: Network receiver, AV receiver
Series: Marantz NR
Speaker configuration: Speaker A/B connections
Output power per channel: 85 Watt
Technical specifications
Output power: 425 Watt
Output impedance: 6 Ohm
Speaker connections: Banana plugs suitable, screw terminals
Construction: Discrete power amplifiers
HDMI version: HDMI 1.4a
Playback formats: MP3, WMA, AAC, FLAC, ALAC, WAV, FLAC-HD, JPEG
Connections
analog audio input: 3x LINE In (RCA, Stereo)
analog audio output: Zone 2 (LINE Out, Cinch/RCA, Stereo)
digital audio inputs: 1x S/PDIF IN (TOS-Link optical), 1x S/PDIF IN (Cinch/RCA coaxial)
HDMI ports: HDMI-ARC, 1x HDMI Output, 6x HDMI Inputs
Video Connections: 1x Component Out, 1x Composite Out, 2x Component In, 3x Composite In
Preamp outputs: 2.2 Pre Out (Cinch/RCA), 2x Subwoofer (Cinch/RCA)
Front Connections: HDMI Input, 1x USB 2.0 Type-A, Headphone Output, 1x Measurement Microphone (Setup Mic)
Data connection: 1x Network (Ethernet)
additional connection: Antenna connection
gold-plated connections: no
Audio
Audio functions: Multizone, Pure Direct, Audyssey Dynamic Volume, Audyssey Dynamic EQ, Multichannel Stereo, Variable Crossover Frequency, Hi-Bit Processing, Bass Management, Gapless Playback, Direct Mode, Equalizer, DSD Audio Compatible
Dolby Formats: Dolby TrueHD, Dolby Digital EX, Dolby ProLogic IIx, Dolby ProLogic IIz
DTS Formats: DTS HD Master Audio, DTS ES, DTS 96/24
Number of listening zones: 2
Video
Supported Resolutions: 4K (2160p)
Video Functions: Video Equalizer, 4K Pass-Through, HDMI Standby Through, Dolby Vision, High Dynamic Range (HDR)
3D-Ready: yes
Connectivity
Network functions: Control via app, Control via IP, Audio streaming, Network streaming
Wireless transmissions: AirPlay, Bluetooth, Wi-Fi
Streaming Services: Deezer, Juke, Napster, TuneIn, Spotify, Tidal, Internet Radio
USB Interface: yes
HDMI-CEC: yes
DLNA: yes
Functions
Comfort features: Graphical User Interface (GUI), Color-coded speaker terminals, Installation Wizard, Single-line FL display, On-Screen Display (OSD)
Environmental properties: Sleep Timer, Auto-Off, Energy Saving Mode, Standby Passthrough
automatic measurement: yes
Calibration System: Audyssey MultEQ
LipSync: yes
with remote control: yes
Reception areas: FM (VHF), AM (MW)
Radio Data System: yes
Number of station presets: 56
Ppower supply
Power consumption in operation: 250 Watt
Power Consumption Standby: 0,2 Watt
Additional features
Dimensions: 440 x 105 x 376 mm
Weight: 8,2 kg
Housing property: Aluminum
Colors: gold, silver
