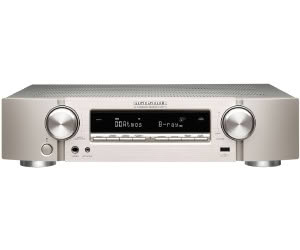

Product types: AV Receiver, Stereo Receiver, Network Receiver
Series: Marantz NR
Speaker configurations: 7.2, 2.0
Power per channel: 90 Watt
Technical specifications
Output power: 7 x 90 Watt
Output impedance: 6 Ohm
Speaker connection: Screw clamps
Construction: Discrete power amplifiers
Connections
analog audio inputs: 3x Line In (Cinch/RCA, Stereo), 1x MM Phono In (Cinch/RCA, Stereo)
analog audio output: Zone 2 (LINE Out, RCA, Stereo)
digital audio inputs: 1x S/PDIF IN (TOS-Link optical), 1x S/PDIF IN (Cinch/RCA coaxial)
HDMI ports: HDMI-ARC, 1x HDMI Out, 8x HDMI In
Video Connections: 1x Component OUT, 1x Composite OUT, 2x Component IN, 3x Composite IN
Preamp outputs: 2.2 Pre Out (RCA)
Front Connectors: HDMI Input, 1x USB 2.0 Type-A, Headphone Output, 1x Measurement Microphone (Setup Mic)
Data connections: 1x Network (Ethernet), 1x USB 2.0
Connections for control signals: 1x Remote OUT, 1x Remote IN, 1x 12V Trigger IN
additional connection: Antenna connection
gold-plated connectors: yes
Audio
Audio functions: Pure Direct, Audyssey Dynamic Volume, Audyssey Dynamic EQ, Multichannel Stereo, Variable Crossover Frequency, Gapless Playback, Bass Management
Dolby Formats: Dolby TrueHD, Dolby Surround, Dolby Atmos
DTS Formats: DTS HD Master Audio, DTS:X, DTS Neural:X, DTS Virtual:X, DTS HD
Number of listening zones: 2
Video
Supported Resolutions: 4K (2160p)
Video Functions: Video Equalizer, 4K Pass-Through, HDMI Standby Through, HLG (Hybrid Log Gamma), Dolby Vision, High Dynamic Range (HDR)
3D-Ready: yes
Connectivity
Network functions: Audio Streaming, Control via App, Control via IP, Network Streaming
Wireless Transmissions: AirPlay, Bluetooth, Wi-Fi, HEOS, AirPlay 2, Spotify Connect
Streaming Services: Deezer, TuneIn, Spotify, Tidal, Internet Radio, Amazon Music, Napster
USB interface: yes
HDMI-CEC: yes
DLNA: yes
Functions
Comfort features: Graphical User Interface (GUI), Installation Assistant, Single Line FL Display
Environmental properties: Sleep Timer, Auto Off, Power Save Mode
automatic measurement: yes
Measurement System: Audyssey MultEQ
LipSync: yes
with remote control: yes
Reception range: FM (FM)
RDS: yes
Power supply
Power consumption in operation: 250 Watt
Power Consumption Standby: 0,2 Watt
Smart Home
Language Assistants: Google Assistant, Apple Siri, Amazon Alexa
further properties
Dimensions: 440 x 105 x 376 mm
Weight: 8,4 kg
Enclosure properties: Metal
Colors: gold, silver
