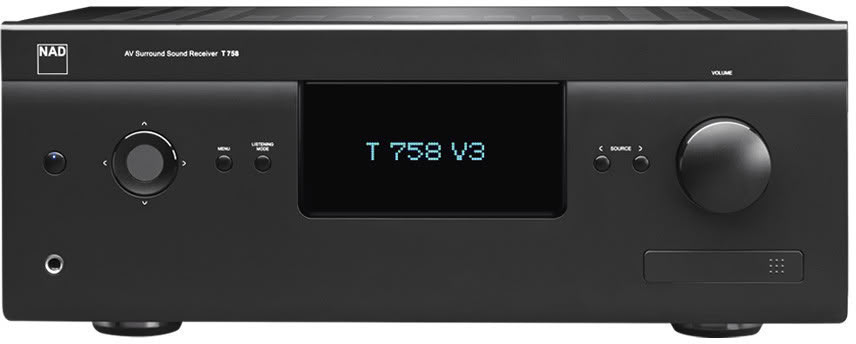

NAD T 758 V3

Product type: AV Receiver
Speaker configuration: 7.1
Power per channel: 60 Watt

Technical specifications
Output power: 7 x 60 Watt
Speaker connectors: Banana plugs suitable, screw terminals
maximum sample rate: 192 kHz
Bitrate: 24 Bit
Constructions: 24-bit D/A converters, modular construction

Connections
analog audio input: 3x LINE In (RCA, Stereo)
analog audio output: Zone 2 (LINE Out, RCA, Stereo)
digital audio inputs: 2x S/PDIF IN (TOS-Link optical), 2x S/PDIF IN (Cinch/RCA coaxial)
digital audio outputs: 1x S/PDIF OUT (TOS-Link optical), 1x S/PDIF OUT (Cinch/RCA coaxial)
HDMI ports: 1x HDMI OUT, 3x HDMI IN
Preamp outputs: 7.1 Surround (Cinch/RCA)
Surround Input: 7.1 Surround (Cinch/RCA)
Front Connection: Headphone output
Data connection: 1x USB 2.0
Connections for control signals: RS-232, 2x Remote OUT, 2x Remote IN
gold-plated connectors: yes

Audio
Audio functions: High-Resolution Audio, MQA-capable
Dolby Formats: Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, Dolby ProLogic IIx
DTS Formats: DTS HD Master Audio, DTS HD High Resolution Audio
Number of listening zones: 2

Video
Video Functions: x.v.Color, 4K Pass-Through, HLG (Hybrid Log Gamma), BT.2020 Support, HDCP 2.2, High Dynamic Range (HDR)
3D-Ready: yes

Connectivity
USB interface: yes
HDMI-CEC: yes

Functions
automatic measurement: yes
Measurement System: Dirac Live
LipSync: yes
with remote control: yes

Power supply
Power consumption in operation: 57 Watt
Power Consumption Standby: 0,5 Watt

further properties
Dimensions: 435 x 172 x 397 mm
Weight: 15,4 kg
Color: black
