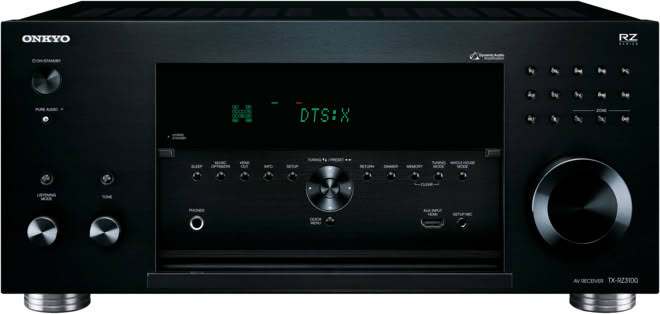

Onkyo TX-RZ3100 (schwarz)

Product types: Network receiver, AV receiver
Series: Onkyo TX-RZ
Speaker configuration: 11.2
Power per channel: 200 Watt

Technical specifications
Output power: 2.200 Watt
Output impedance: 4 Ohm
Speaker connection: Screw terminals
Construction: Digital amplifiers
HDMI version: HDMI 2.0

Connections
analog audio inputs: 7x LINE In (Cinch/RCA, stereo), 1x MM Phono In (Cinch/RCA, stereo)
analog audio outputs: Zone 2 (LINE Out, Cinch/RCA, Stereo), Zone 3 (LINE Out, Cinch/RCA, Stereo)
digital audio inputs: 3x S/PDIF IN (TOS-Link optical), 2x S/PDIF IN (Cinch/RCA coaxial)
HDMI ports: HDMI-ARC, 2x HDMI-Out, 8x HDMI-In
Video Connections: 1x Component Out, 1x Composite Out, 2x Component In, 2x Composite In
Preamp outputs: 11.2 Surround (Cinch/RCA), 2x Subwoofer (Cinch/RCA)
Connections for control signals: RS-232, 1x 12V Trigger OUT, 1x Remote IN
additional connection: Antenna connection
gold-plated connectors: yes

Audio
Audio functions: High-Resolution Audio
Dolby Format: Dolby Atmos
DTS Formats: DTS:X, DTS Neural:X
THX Formats: THX Select 2 Plus
Number of listening zones: 3

Video
Supported Resolutions: 1080p
Video Functions: 4K Pass-Through, HDCP 2.2, HDMI Zone Switching

Connectivity
Network functions: HDMI Network Channel (HEC)
Radio transmissions: AirPlay, Bluetooth, WLAN
Streaming Services: Deezer, TuneIn, Spotify, Tidal, Google Cast
HDMI-CEC: yes

Functions
Comfort features: Graphical User Interface (GUI), On-Screen Display (OSD)
automatic measurement: yes
Measurement System: AccuEQ
LipSync: yes
with remote control: yes

Power supply
Power consumption in operation: 340 Watt
Power Consumption Standby: 0,2 Watt

further properties
Weight: 19,7 kg
Housing property: Metal
Color: black
