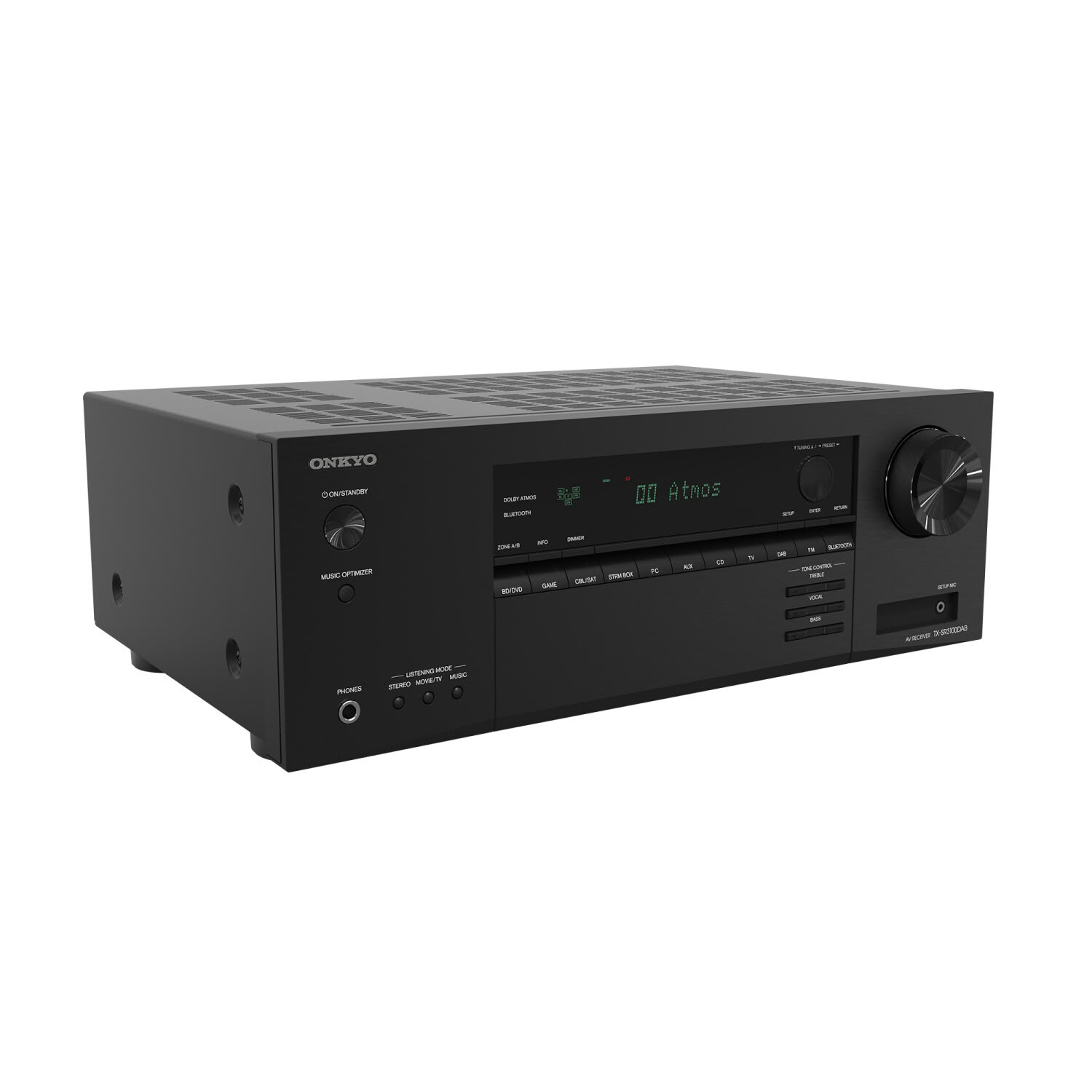

Onkyo TX-SR 3100 DAB

Product types: AV Receiver, Network Receiver
Series: Onkyo TX-SR
Speaker configuration: 5.2
Output power per channel: 80 Watt

Technical specifications
Speaker connection: Screw terminals

Connections
analog audio input: 3x LINE In (RCA, Stereo)
Analog audio outputs: 1x LINE Out (RCA, Stereo), Zone 2 (LINE Out, RCA, Stereo)
digital audio inputs: 1x S/PDIF IN (Cinch/RCA coaxial), 1x S/PDIF IN (TOS-Link optical)
HDMI ports: 4x HDMI inputs, HDMI-eARC, 1x HDMI output
Preamp outputs: 1x Rec Out (RCA, Stereo), 2x Subwoofer (RCA)
Front Connections: 1x Measurement Microphone (Setup Mic), Headphone Output
additional connection: Antenna connection
gold-plated connections: yes

Audio
Audio functions: Advanced Music Optimizer, High-Resolution Audio
Dolby Formats: Dolby Atmos, Dolby Surround, Dolby Height Virtualization
DTS Formats: DTS:X, DTS Neural:X, DTS Virtual:X
Number of listening zones: 2

Video
Supported Resolutions: 8K (4320p), 4K (2160p)
Video Functions: Dolby Vision, HDR10+, HDCP 2.3, Quick Frame Transport, Dynamic HDR

Connectivity
Wireless transmission: Bluetooth

Functions
automatic measurement: yes
Calibration System: AccuEQ
Reception areas: Digital radio, FM (VHF)

Additional features
Dimensions: 435 x 160 x 328 mm
Color: black
