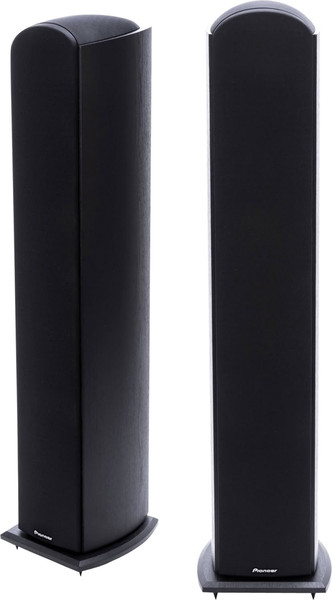

Pioneer S-FS73A

Product types: Floorstanding speakers, Dolby Atmos speakers
Series: Pioneer Series 7, Pioneer Elite

Performance
Sensitivity: 86 dB/mW
Rated Load: 140 Watt
System: 3-Way
Frequency Response: 38 - 20.000 Hz
Frequency Response of: 38 Hz
Frequency Response up to: 20.000 Hz
Impedance: 4 Ohm

Connections
Speaker connection: Screw terminals (gold-plated)

Design
Housing color: black
Speaker cover color: black
Color of speaker diaphragm: black
Surface: Matte
Front color: black
Stand base color: black
Color: black

Construction
Housing features: removable speaker grille, bass reflex
Construction: Cceiling spotlight (Topfire), direct radiator (Frontfire), coaxial system
Number of tweeters: 2
Tweeter chassis: 25 mm
Tweeter material: Fabric
Tweeter design: Dome
Number of midrange drivers: 2
Midrange driver: 102 mm
Midrange driver material: Aluminum
Number of woofers: 3
Woofer: 133 mm
Woofer Material: Aluminum
Number of bass reflex openings: 3
Bass reflex opening position: Back side

Dimensions and scope of delivery
Weight: 16 kg
Scope of delivery: Speaker grille, User manual
Width: 188 mm
Height: 945 mm
Depth: 221 mm

Additional features
Areas of application: Home cinema, living room
Configurations: Spikes prepared, Ground, Base, Vertical
Market launch: 2015
