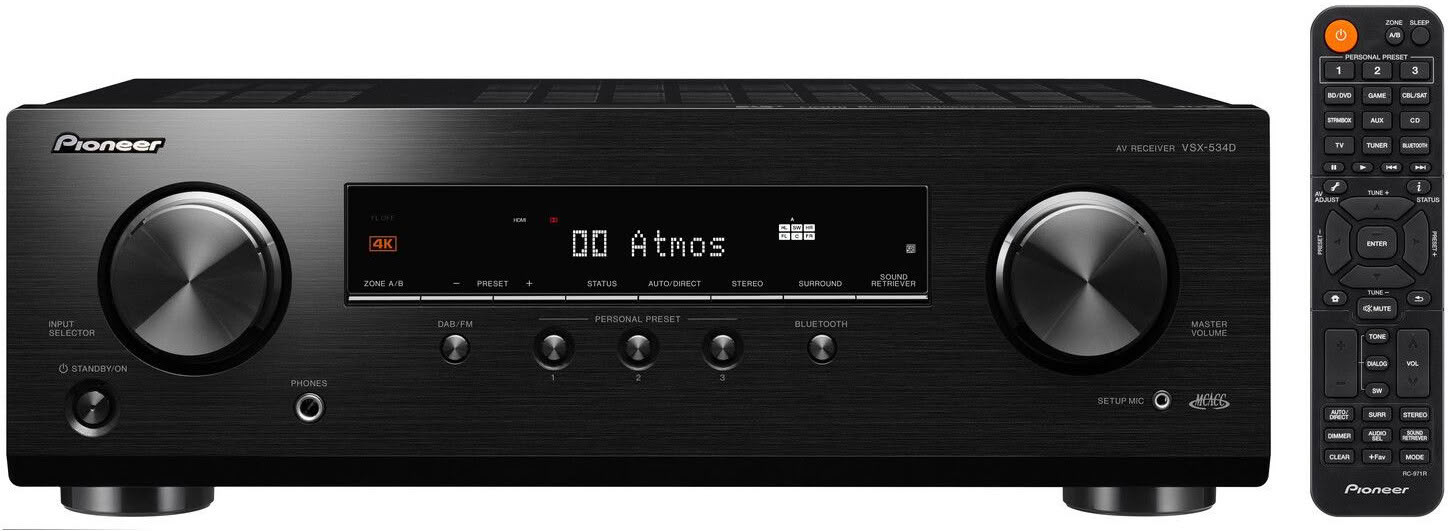

Pioneer VSX-534D-B (schwarz)

Product type: AV Receiver
Series: Pioneer VSX
Speaker configuration: 5.1
Power per channel: 135 Watt

Technical specifications
Output impedance: 6 Ohm
Speaker connectors: Press studs, Screw studs

Connections
analog audio input: 3x LINE In (RCA, Stereo)
analog audio output: Zone 2 (LINE Out, RCA, Stereo)
digital audio inputs: 1x S/PDIF IN (TOS-Link optical), 1x S/PDIF IN (Cinch/RCA coaxial)
HDMI ports: 1x HDMI Output, 4x HDMI Inputs
Video Connections: 1x Component OUT, 1x Component IN, 1x Composite OUT
Preamp outputs: 2x Subwoofer (Cinch/RCA)
Front Connectors: Headphone Output, 1x Measurement Microphone (Setup Mic)
Data connection: 1x USB 2.0
additional connection: Antenna connection

Audio
Audio functions: High-Resolution Audio
Dolby Formats: Dolby TrueHD, Dolby Digital Plus, Dolby Atmos
DTS Formats: DTS HD Master Audio, DTS HD High Resolution Audio, DTS ES, DTS:X, DTS Neural:X, DTS Virtual:X, DTS 96/24, DTS HD Express

Video
Video Functions: Deep Color, x.v.Color, 4K Pass-Through, HDR10, HLG (Hybrid Log Gamma), Dolby Vision, BT.2020 Support, HDCP 2.2
3D-Ready: yes

Connectivity
Network functions: Audio Streaming
Radio transmission: Bluetooth
USB interface: yes

Functions
Comfort features: Graphical User Interface (GUI), On-Screen Display (OSD)
Environmental properties: Sleep Timer, Auto Shutoff, Standby Pass Through
automatic measurement: yes
Measurement System: MCACC
Reception areas: FM (FM), DAB (Digital Audio Broadcasting)
RDS: yes
Number of Tuner Storage: 40

further properties
Dimensions: 435 x 148 x 321 mm
Weight: 8 kg
Enclosure properties: Metal
Color: black
