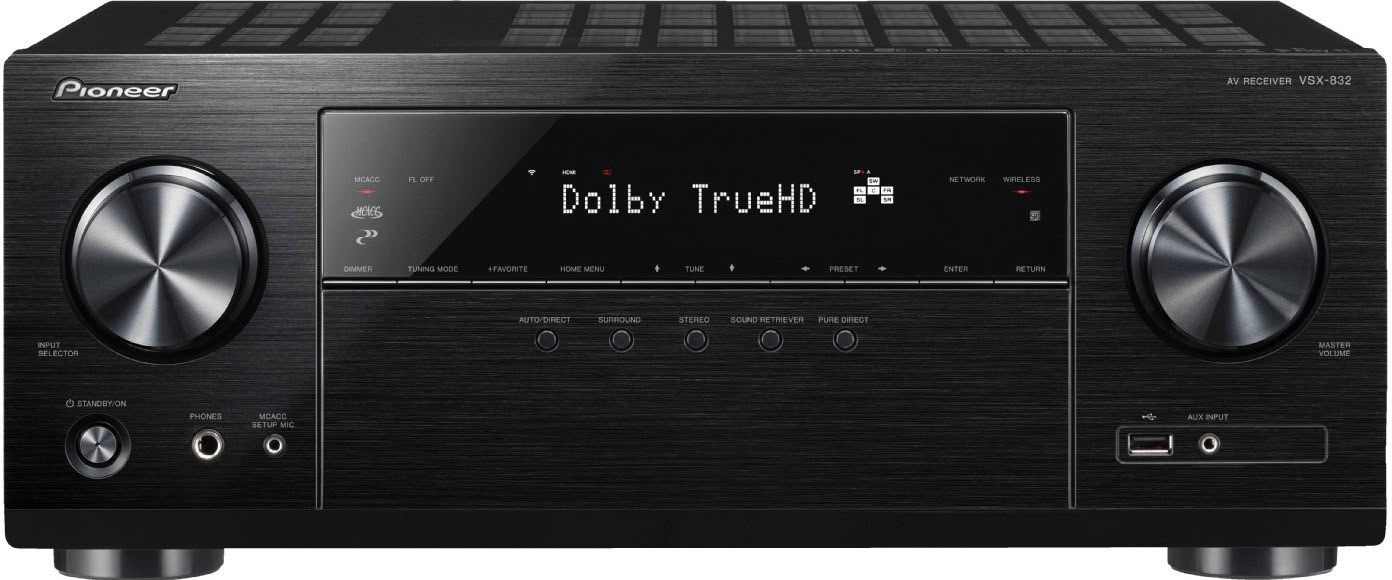

Pioneer VSX-832 (schwarz)

Product types: Network receiver, AV receiver
Speaker configuration: 5.1
Power per channel: 130 Watt

Technical specifications
Output power: 650 Watt
Output impedance: 6 Ohm
Speaker connectors: Banana plugs suitable, screw terminals
Constructions: 24-bit D/A converters, 4Ω speaker support

Connections
analog audio input: 3x LINE In (RCA, Stereo)
digital audio inputs: 1x S/PDIF IN (TOS-Link optical), 1x S/PDIF IN (Cinch/RCA coaxial)
HDMI ports: HDMI-ARC, 1x HDMI Out, 5x HDMI In
Video Input: 3x Composite IN
Preamp outputs: 1x Subwoofer (Cinch/RCA)
Front Connectors: 1x USB 2.0 Type-A, Headphone output, Aux In (3.5mm jack, stereo), 1x Measurement microphone (Setup Mic)
Data connection: 1x Network (Ethernet)

Audio
Audio functions: Advanced Sound Retriever
Dolby Formats: Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, Dolby Digital, Dolby ProLogic II
DTS Formats: DTS HD Master Audio, DTS HD High Resolution Audio, DTS:X, DTS 96/24, DTS Neo:6, DTS HD Express

Video
Supported Resolutions: 4K (2160p)
Video Functions: Deep Color, x.v.Color, 4K Pass-Through, BT.2020 Support, HDCP 2.2, High Dynamic Range (HDR)
3D-Ready: yes

Connectivity
Network functions: Control via App, Audio Streaming
Wireless Transmissions: AirPlay, Fire Connect, Chromecast, DTS Play-Fi, Bluetooth, Wi-Fi
Streaming Services: Deezer, Pandora, TuneIn, Spotify, Tidal, Internet Radio
USB interface: yes
DLNA: yes

Functions
Comfort features: Installation Assistant, Screen Menu (OSD)
Environmental properties: Display dimmer
automatic measurement: yes
Measurement System: MCACC
with remote control: yes
Reception areas: FM (FM), AM (AM)

further properties
Dimensions: 435 x 173 x 320 mm
Weight: 9,2 kg
Color: black
