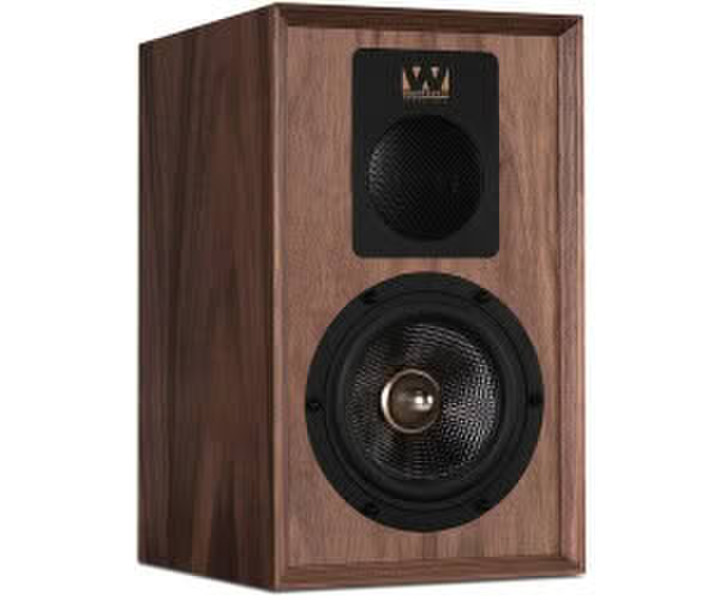

Wharfedale Dovedale

Product types: Floor-standing speakers, Bookshelf speakers
Series: Wharfedale Heritage Series

Operation
Principle: Passive

Performance
Speaker System: 2.0 Stereo
Sensitivity: 89 dB/mW
recommended amplifier power: 25 - 250 Watt
System: 3-Way
Transition frequencies: 560 Hz, 2,900 Hz
Frequency Response: 36 - 20.000 Hz
Frequency Response of: 36 Hz
Frequency Response up to: 20.000 Hz
Volume: 73,3 Liter
Impedance: 6,8 Ohm
Sound Pressure Level: 112 dB

Connections
Speaker connection: Screw terminals (gold-plated)

Design
Speaker cover color: Gray
Color of speaker diaphragm: black
Surface: satin finish
Front color: brown
Stand base color: black
Case Surface: Veneer
Color: brown
Housing design: Walnut

Construction
Housing features: closed, bass reflex
Number of tweeters: 1
Tweeter chassis: 25 mm
Tweeter material: Fabric
Tweeter design: Dome
Number of midrange drivers: 1
Midrange driver: 127 mm
Midrange driver material: Kevlar/Fabric
Number of woofers: 1
Woofer: 254 mm
Woofer Material: Kevlar
Number of bass reflex openings: 2
Bass reflex opening position: Back side

Dimensions and scope of delivery
Weight: 26,2 kg
Scope of delivery: Feet, User manual
Width: 370 mm
Height: 660 mm
Depth: 447 mm

Additional features
Areas of application: Home cinema, Hi-Fi system, Living room
Configurations: Floor, Stand, Vertical, Shelf
Market launch: 2012
