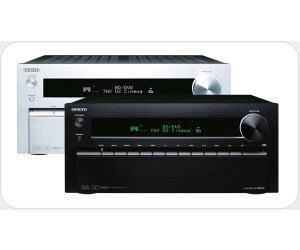

Product types: Network receiver, AV receiver
Series: Onkyo TX-NR
Speaker configuration: A/B speaker connections
Power per channel: 200 Watt
Technical specifications
Output power: 9 x 200 Watt
Output impedance: 6 Ohm
Speaker connectors: Banana plugs suitable, screw terminals
Constructions: Discrete power amplifiers, 24-bit D/A converters, Digital Signal Processor (DSP), 32-bit DSPs
HDMI version: HDMI 1.4a
Playback formats: MP3, AAC, ALAC, FLAC, WMA Lossless
Playback media: DVD-Audio, DVD-Video, SACD
Connections
analog audio inputs: 7x LINE Inputs (RCA, Stereo), 1x MM Phono Input (RCA, Stereo)
analog audio outputs: Zone 2 (Line Out, Cinch/RCA, Stereo), Zone 3 (Line Out, Cinch/RCA, Stereo), 2x Line Out (Cinch/RCA, Stereo)
digital audio inputs: 3x S/PDIF IN (Cinch/RCA coaxial), 2x S/PDIF IN (TOS-Link optical)
HDMI ports: HDMI-ARC, 2x HDMI-Out, 8x HDMI-In
Video Connections: VGA Input, 1x Component OUT, 4x Composite IN, 2x Composite OUT, 2x Component IN
Preamp outputs: 11.2 Surround (Cinch/RCA)
Front Connections: HDMI Input, Composite Video Input, Headphone Output, iPod USB Connection, 1x Measurement Microphone (Setup Mic), S/PDIF IN (TOS-Link, Optical), LINE In (Cinch/RCA, Stereo)
Data connections: 1x Network (Ethernet), 2x USB 2.0
Connections for control signals: RS-232, 1x Remote OUT, 2x 12V Trigger OUT, 1x Remote IN
gold-plated connectors: yes
Audio
Audio functions: Advanced Music Optimizer, Multizone, Audyssey Dynamic Volume, Audyssey Dynamic EQ, Variable Crossover Frequency, Gapless Playback, Direct Mode, Jitter Reduction, Phase Control, PLL Circuit
Dolby Formats: Dolby TrueHD, Dolby ProLogic IIz
DTS Formats: DTS Neo:X, DTS HD Master Audio
THX Formats: THX Ultra 2 Plus
Number of listening zones: 3
Video
Supported Resolutions: 4K (2160p)
Video Functions: Deep Color, 4K Pass-Through, HDMI Zone, Picture-in-Picture Preview (InstaPrevue), Video Adjust
3D-Ready: yes
Connectivity
Network functions: Audio Streaming, Control via App, Network Streaming, MHL Interface
Wireless Transmissions: Bluetooth, Wi-Fi
Streaming Services: last.fm, vTuner, Aupeo, Simfy, Spotify, MP3tunes, Internet radio
USB interface: yes
HDMI-CEC: yes
DLNA: yes
Universal Plug and Play (UPnP): yes
Functions
Comfort features: Screen menu (OSD), pre-programmed remote control
Environmental properties: Auto-off, Hybrid Standby Function, Standby Pass-through
automatic measurement: yes
Measurement System: Audyssey MultEQ XT32
LipSync: yes
with remote control: yes
Reception areas: FM (FM), AM (AM)
RDS: yes
Number of Tuner Storage: 40
Power supply
Power consumption in operation: 1.010 Watt
Power Consumption Standby: 0,15 Watt
further properties
Dimensions: 435 x 198.5 x 463.5 mm
Weight: 29 kg
Enclosure properties: Aluminum
Color: black
