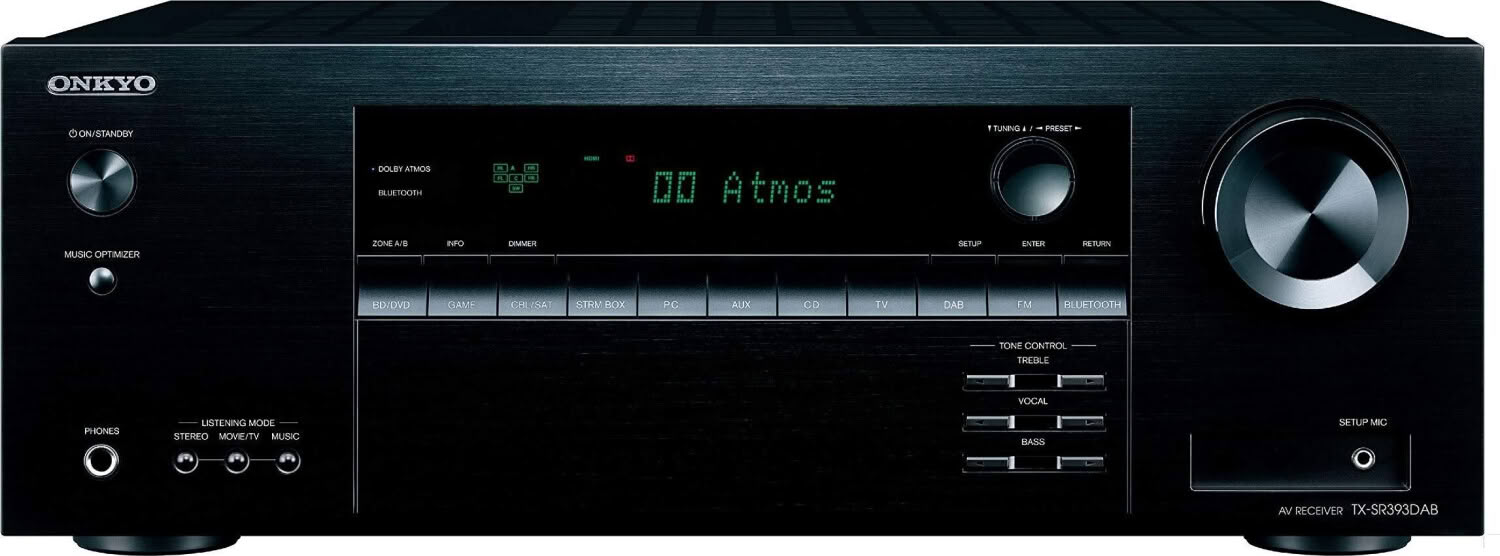

Onkyo TX-SR393DAB-B (schwarz)

Product types: AV Receiver, Network Receiver
Series: Onkyo TX-SR
Speaker configuration: 5.1
Power per channel: 155 Watt

Technical specifications
Output power: 5 x 155 Watt
Output impedance: 4 Ohm
Speaker connectors: Terminals, Screw terminals
maximum sample rate: 384 kHz
Bitrate: 24 Bit
Construction: 24-bit D/A Converter

Connections
analog audio input: 3x LINE In (RCA, Stereo)
analog audio output: Zone 2 (LINE Out, RCA, Stereo)
digital audio inputs: 1x S/PDIF IN (TOS-Link optical), 1x S/PDIF IN (Cinch/RCA coaxial)
HDMI ports: 4x HDMI Inputs, 1x HDMI Output, HDMI-ARC
Preamp outputs: 2x Subwoofer (Cinch/RCA)
Front Connections: 1x Measurement Microphone (Setup Mic), Headphone Output

Audio
Dolby Formats: Dolby TrueHD, Dolby Atmos
DTS Formats: DTS HD, DTS:X, DTS Virtual:X
Number of listening zones: 1

Video
Video Functions: Deep Color, x.v.Color, HDCP 2.2, High Dynamic Range (HDR), BT.2020 Support, Dolby Vision, HLG (Hybrid Log Gamma)
3D-Ready: yes

Connectivity
Wireless transmission: Bluetooth
USB interface: yes

Functions
automatic measurement: yes
Measurement System: AccuEQ
LipSync: yes
with remote control: yes
Reception areas: AM (MW), DAB, DAB+, FM (UKW)
Number of station presets: 40

Power supply
Power consumption in operation: 210 Watt
Power Consumption Standby: 0,3 Watt

further properties
Dimensions: 435 x 168 x 326,5 mm
Weight: 2,8 kg
Color: black
